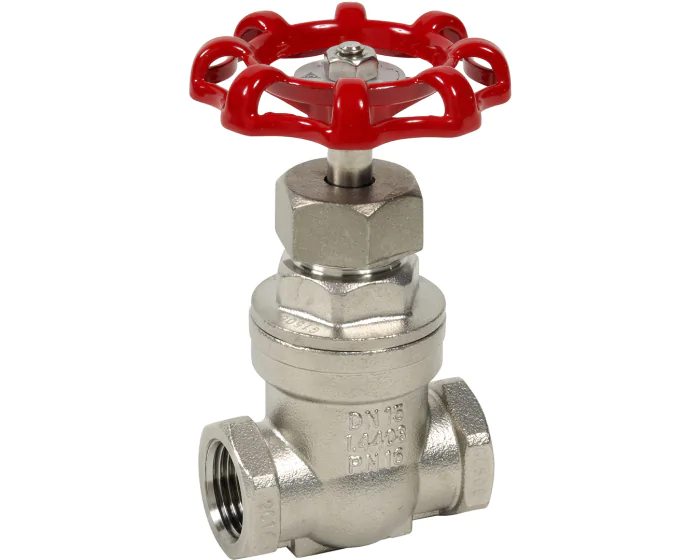

Syveco offers the 106 series stainless steel gate valve: female threaded BSP, full bore, rotating non-rising stem with inner thread, PTFE packing gland and PTFE bonnet gasket.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Bonnet material | Stainless steel ASTM A351 CF8M |
| CE risk category | III Module H |
| Thread standard | ISO 228-1 |
| Tightness test standard | EN 12266-1. Rate A |
| Bonnet | Screwed |
| Opening device | Handwheel |
| Application | Industry |
| Shaft/stem matérial | Stainless steel AISI 316 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 55.0 |
| Sealing | Metal / Metal |
| Fluid | Acids |
| Gasket | PTFE |
| Kv (m³/h) | 19.2 |
| Body material | Stainless steel CF8M (1.4408) |
| Gate material | Stainless steel ASTM A351 CF8M |
| Bore | Full |
| Packing gland | Yes |
| PS (bar) | 16 |
| Connections | BSP FF |
| Seats | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 180 |
| TS min (°C) | -20 |
| Warranty period | 2 years |
| Type of stem | Non-rising |
| CE | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full 1/2'' | 106004 | S1010431 |
€42.23
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3/4'' | 106005 | S1010432 |
€52.06
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 1'' | 106006 | S1010433 |
€63.37
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 1''1/4 | 106007 | S1010434 |
€82.11
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 1''1/2 | 106008 | S1010435 |
€105.09
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2'' | 106009 | S1010436 |
€143.73
(excl. btw)
|
add to cart |
